產品型號 |
公稱壓力 |
體試驗壓力 |
密封試驗壓力 |
|
SD61X-600Lb SD364Y-600Lb |
600Lb |
15.0 |
11.0 |
|
SD61X-900LbC9 SD364Y-900LbC9 |
900Lb |
22.5 |
16.5 |
|
SD61X-3000LbC9 |
3000Lb |
47.5 |
34.7 |
|
SD61Y-64 |
6.4 |
9.6 |
7.1 |
|
SD61Y-P5450V |
P5450V |
15.0 |
6.3 |
|
SD61Y-P5464V |
P5464V |
15 |
8.0 |
|
SD61Y-P3564 |
P3564 |
15 |
8 |
|
SD61Y-100 |
10 |
15.0 |
6.5 |
|
SD61Y-P5550V |
P5550V |
17.25 |
6.5 |
|

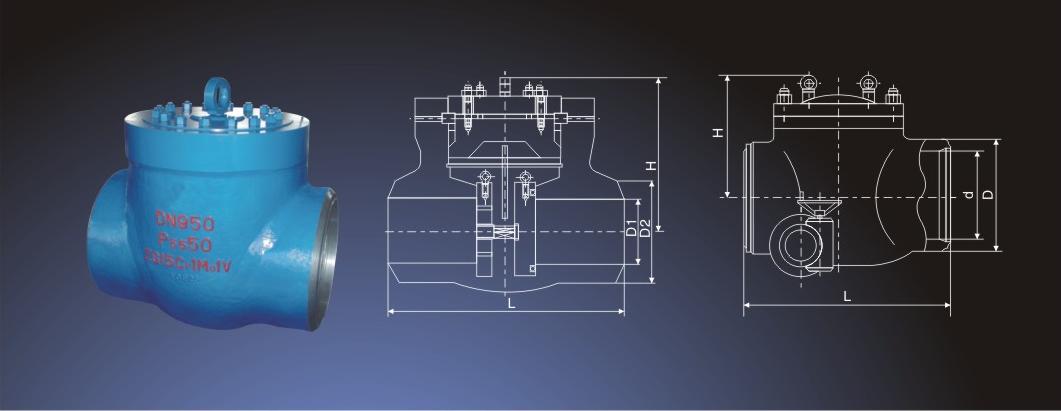

DN(mm)/NPS(in) |
L |
d |
D |
H |
|
22"SD61X-600Lb |
1295 |
500 |
586 |
655 |
|
28"SD61X-900LbC9 |
1753 |
608 |
762 |
1012 |
|
22"SD61X-600Lb |
1499 |
330 |
580 |
970 |
|
22"SD61X-3000LbC9 |
1295 |
500 |
584 |
700 |
|
34"SD364Y-600Lb |
1753 |
778 |
882 |
1044 |
|
22"SD364Y-900Lb |
1455 |
476 |
570 |
910 |
|
28"SD364Y-900Lb |
1753 |
608 |
762 |
1007 |
|
350SD61Y-64 |
900 |
325 |
410 |
555 |
|
400SD61H-40 |
950 |
385 |
465 |
570 |
|
450SD61Y-P5450V |
1100 |
450 |
560 |
695 |
|
500SD61Y-P5464V |
1100 |
460 |
570 |
705 |
|
530SD61Y-P3564 |
1100 |
515 |
570 |
734 |
|
950SD61YP5550V |
1850 |
930 |
1120 |
1340 |
|
1000SD61Y100 |
1850 |
995 |
1135 |
1310 |
